PVC Pipe Bushing Guide: Function, Types, and Uses

Introduction: Why PVC Pipe Bushings Matter

In any PVC piping system, having the right fittings is key to performance, safety, and longevity. One of the most useful but often overlooked fittings is the PVC pipe bushing. These small components play a big role in connecting pipes of different sizes, reducing internal diameters, and saving space without compromising on flow or pressure.

In this guide, you’ll learn what a PVC pipe bushing is, how it works, the types available, where to use it, and how to install it properly.

Frequently Asked Questions (FAQ)

1. What is a PVC pipe bushing?
It’s a fitting used to reduce the size of a pipe fitting opening, allowing smaller pipes to connect to larger ones.

2. Is a bushing the same as a reducer?
Not exactly. A reducer typically joins two pipes directly, while a bushing fits inside a fitting to reduce its opening size.

3. Can bushings be used in pressure systems?
Yes, most PVC bushings are pressure-rated and suitable for water supply and irrigation systems.

4. Are PVC bushings glued or threaded?
They come in both types. Some are slip (glue-on) and others are male or female threaded depending on the application.

5. What sizes do PVC bushings come in?
They are available in many size combinations—from 1½" × 1" to 4" × 2" and more—depending on pipe diameter.

What Is a PVC Pipe Bushing?

A PVC pipe bushing is a specialized pipe fitting that reduces the size of a port in a fitting or pipe system. It allows a pipe of one diameter to fit into a larger fitting or system component. Bushings are inserted into fittings—not directly into the pipe itself—and are available in various configurations such as slip, threaded, and combination types.

Key Features:

• Reduces inner fitting size to accommodate smaller pipes
• Compact design that saves space
• Made from rigid PVC for durability and chemical resistance
• Available in Schedule 40 and Schedule 80

Unlike adapters or couplings, which usually connect pipes end-to-end, bushings step down pipe sizes inside a fitting.

Common Types of PVC Pipe Bushings

PVC bushings come in multiple forms to meet different plumbing requirements. Here are the most common types:

1. Slip x Slip (Socket x Socket) Bushing

Both ends are smooth for glue-on installation. Used when both pipes are solvent-welded.

2. Slip x Threaded Bushing

One end is glued into the fitting; the other is threaded to accept male-threaded pipes or fittings.

3. Threaded x Threaded Bushing

Both ends have threads. Used where solvent cement is not preferred or where disassembly may be needed.

4. Flush Bushings

Designed to sit flush with the fitting, offering a low-profile look and minimizing space usage.

5. Reducing Bushings with Center Stop

These have a central ridge that stops the pipe at the right depth for accurate installation.

Where Are PVC Bushings Used?

PVC pipe bushings are used in systems where pipes of different diameters need to be connected efficiently. Their applications span across many sectors, including:

• Residential Plumbing: Connecting faucets, water supply lines, and appliances to smaller pipe diameters.

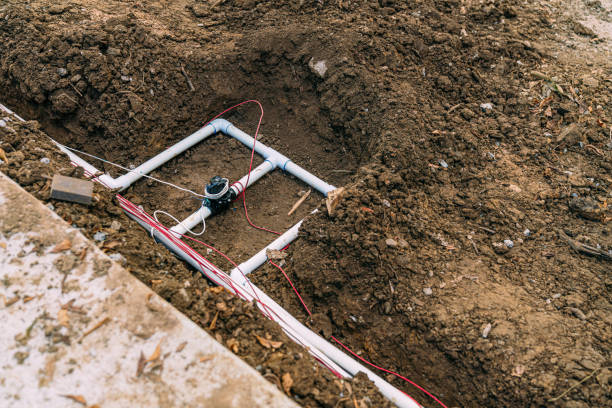

• Irrigation Systems: Used in drip irrigation setups to reduce pipe size where flow rate needs adjustment.
• Pool and Spa Plumbing: Commonly used in pump and filter connections.
• Industrial Systems: Helps in process piping where chemical resistance and pressure rating are key.
• DIY Projects and Furniture Frames: Reduces pipe size to fit decorative or structural needs.

How to Choose the Right PVC Bushing

When selecting a PVC pipe bushing, several factors must be considered to ensure compatibility and long-term performance:

1. Pipe Size Compatibility

Confirm both the large and reduced diameters match your system. Always check nominal sizes.

2. Schedule Type (40 vs 80)

• Schedule 40: Used in low-pressure residential and irrigation systems.
• Schedule 80: Thicker walls for high-pressure and industrial uses.

3. Connection Type

Decide between:

• Slip fit (requires PVC cement)
• Threaded fit (requires thread sealant or Teflon tape)

4. Material Certification

For potable water or food-grade systems, ensure the bushing meets NSF or ANSI standards.

5. Color and Code Compliance

Typically, Schedule 40 bushings are white, and Schedule 80 are gray. Match the color code for compliance and identification.

Installation Tips for PVC Pipe Bushings

Correct installation is essential to prevent leaks or pressure failures. Here’s how to install a PVC pipe bushing:

Tools You May Need:

• Pipe cutter or hacksaw
• PVC primer and cement (for slip bushings)
• Teflon tape or thread sealant (for threaded bushings)
• Clean cloth

Step-by-Step Instructions:

1. Cut and clean the pipe ends: Make straight, clean cuts for a proper fit.
2. Dry-fit all parts: Ensure everything fits properly before gluing.
3. Apply PVC primer (if using slip-type bushing): This cleans and softens the plastic for bonding.
4. Apply PVC cement: Add a thin layer to both the inside of the fitting and outside of the bushing.
5. Insert the bushing quickly and twist slightly for a secure bond.
6. Hold for 30 seconds, then let it set.
7. Cure time: Wait at least 15–30 minutes before pressurizing the system; full cure may take up to 24 hours.

PVC Pipe Bushing vs Other Reducers: What’s the Difference?

Bushings are perfect for internal reductions within a fitting, whereas reducer couplings connect two different-sized pipes end-to-end.

Conclusion

PVC pipe bushings are an essential tool for any plumber, DIYer, or irrigation specialist who needs to step down pipe sizes within a system. These compact, durable, and cost-effective fittings help ensure a clean and efficient connection between pipes of different diameters.

Understanding their types, how they work, and how to install them correctly will save time and avoid costly mistakes. Whether you're maintaining a home plumbing system or installing a commercial irrigation network, PVC pipe bushings make your job easier, faster, and more reliable.
