Choosing the right PVC pipe size is essential for any plumbing, drainage, or irrigation project. Using the wrong size can lead to leaks, pressure loss, or inefficient system performance. However, understanding PVC pipe sizes can be confusing due to the variety of dimensions, classifications, and standards. This quick guide breaks down everything you need to know about PVC pipe sizing—what the numbers mean, how to measure them, and which size is best for your needs.
Frequently Asked Questions (FAQ)
1. How are PVC pipe sizes measured?
PVC pipe sizes are typically measured by their nominal size, which refers to the inner diameter (ID) of the pipe, not the outer diameter.
2. What's the difference between Schedule 40 and Schedule 80?
Both refer to pipe wall thickness. Schedule 80 has a thicker wall than Schedule 40, making it suitable for higher pressure applications.
3. Are PVC fittings the same size as PVC pipes?
Yes, but they fit over the pipe, so a 1-inch fitting connects to a 1-inch pipe even though the outer dimensions may differ.
4. Can I mix different schedules of PVC pipe?
Technically yes, but it depends on the application. Always ensure the fittings and pressure ratings match across schedules.
5. What is SDR in PVC pipe sizing?
SDR stands for Standard Dimension Ratio, which is the ratio of the pipe’s outside diameter to its wall thickness. It’s another way to classify pressure-rated pipe.
Understanding PVC Pipe Sizing: Nominal Size vs Actual Size
PVC pipe sizing follows a nominal system, meaning the size listed is not always the actual diameter of the pipe. This can be confusing, especially for beginners.
Nominal Pipe Size (NPS)
This is the standard name given to the pipe. For example, a “1-inch PVC pipe” refers to a pipe with an inner diameter close to 1 inch.
Actual Dimensions
The outer diameter (OD) and inner diameter (ID) may vary based on the wall thickness or pipe schedule. For instance:
- 1-inch Schedule 40 PVC
- OD: 1.315 inches
- ID: ~1.029 inches
- 1-inch Schedule 80 PVC
- OD: 1.315 inches (same)
- ID: ~0.957 inches (thicker wall)
As you can see, the outer diameter stays the same across schedules for compatibility with fittings, while the inner diameter changes.
Common PVC Pipe Schedules: Schedule 40 vs Schedule 80
The term “schedule” refers to the wall thickness of the pipe. The higher the schedule number, the thicker the wall—and the more pressure it can handle.
Schedule 40 PVC
- Most commonly used for residential plumbing, irrigation, and drainage
- Lower pressure rating
- White color
- Easier to cut and handle
Schedule 80 PVC
- Used for industrial and high-pressure systems
- Thicker and heavier than Schedule 40
- Typically gray in color
- Slightly smaller inner diameter due to thicker walls
Here is a quick comparison:
| Feature | Schedule 40 | Schedule 80 |
|---|---|---|
| Wall Thickness | Thinner | Thicker |
| Pressure Rating | Lower | Higher |
| Color | Usually white | Usually gray |
| Weight | Lighter | Heavier |
| ID Size | Larger | Smaller |
PVC Pipe Size Chart (Nominal vs Actual Dimensions)
Below is a simplified chart for Schedule 40 PVC pipes (common in plumbing and irrigation):
| Nominal Size | Outer Diameter (OD) | Inner Diameter (ID) | Wall Thickness |
|---|---|---|---|
| ½ inch | 0.840 inches | 0.602 inches | 0.119 inches |
| ¾ inch | 1.050 inches | 0.804 inches | 0.113 inches |
| 1 inch | 1.315 inches | 1.029 inches | 0.133 inches |
| 1¼ inch | 1.660 inches | 1.360 inches | 0.140 inches |
| 1½ inch | 1.900 inches | 1.590 inches | 0.145 inches |
| 2 inch | 2.375 inches | 2.047 inches | 0.154 inches |
| 3 inch | 3.500 inches | 3.042 inches | 0.216 inches |
| 4 inch | 4.500 inches | 3.998 inches | 0.237 inches |
Always refer to manufacturer specifications or ASTM standards (like ASTM D1785) for precise measurements.
Which PVC Pipe Size Should You Use?
Choosing the right size depends on the flow rate, pressure, and system design. Here are some general guidelines:
- ½ inch to 1 inch: Best for home water lines, garden irrigation, and minor drainage
- 1½ to 2 inches: Ideal for residential drainage, pool plumbing, or small-scale agriculture
- 3 inches and above: Common in large-scale plumbing, industrial systems, and municipal drainage
For pressurized systems, always check flow rate charts and pressure ratings to determine the correct size.

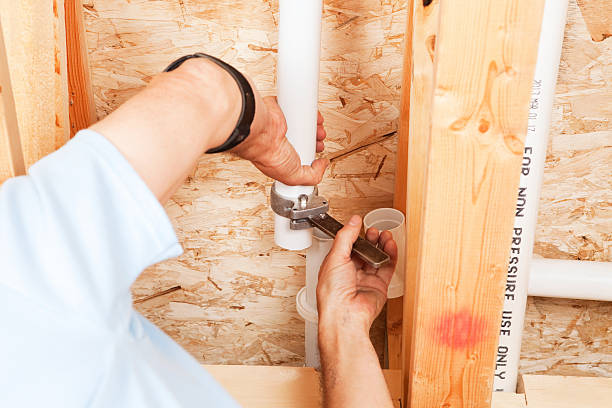

PVC Fittings and Compatibility
PVC pipes are designed to work with standard fittings that match the nominal pipe size. There are several types of fittings:
- Couplings: Connect two straight pipes
- Elbows (90°, 45°): Change direction
- Tees and Crosses: Split flow into multiple directions
- Adapters and Bushings: Connect different sizes or pipe types
Make sure all fittings match the pipe schedule and are rated for the intended use—especially for high-pressure systems.
How to Measure a PVC Pipe
If you're unsure about a pipe's size, here’s how to measure it:
- Measure the outer diameter (OD) using calipers or a tape measure.
- Use a size chart to determine the nominal size based on OD.
- Check wall thickness to identify the schedule.
- Label markings on the pipe often include size, schedule, and certification.
Example: A pipe with 1.315" OD and 0.133" wall thickness is likely a 1" Schedule 40 PVC pipe.
PVC Pipe Sizes vs Other Pipe Materials
PVC is sized differently from copper or steel pipes, which can cause confusion when mixing materials. Here's a comparison:
| Material | Sizing Method | Nominal = ID? | Common Use |
|---|---|---|---|
| PVC | Nominal ID | Yes (approximate) | Water supply, drainage |
| CPVC | Nominal ID | Yes (slightly different than PVC) | Hot water systems |
| Copper | Nominal ID | Close | Hot/cold water lines |
| PEX | Actual OD | No | Flexible water lines |
| Steel | Nominal ID | Yes | Gas, old water systems |
Always use proper adapters or transition fittings when combining PVC with other pipe materials.
Conclusion
Understanding PVC pipe sizes is critical to building a safe and efficient plumbing system. Though the naming can be confusing at first, learning how nominal sizes, wall thickness, and schedules work together will help you choose the right pipe every time. Use this guide as your reference when planning projects, selecting materials, or troubleshooting existing systems.
By mastering the basics of PVC pipe sizing, you ensure smoother installations, better performance, and longer-lasting results—no matter the scale of your project.
